Volvo Photo Locations Part 305
2017 – Volvo XC60, photo from the sneak-preview, at Göteborg Energi on Esperantoplatsen in Göteborg
2017 – Volvo XC60 at Göteborg Energi on Esperantoplatsen in Göteborg

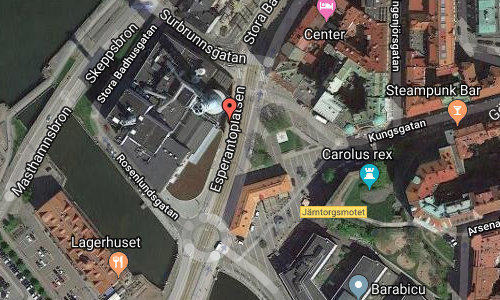

2018 – Rosenlundsverket on Esperantoplatsen in Göteborg (Google Streetview )
2018 – Rosenlundsverket on Esperantoplatsen in Göteborg (Google Streetview )
Rosenlundsverket is a powerplant, owned by Göteborg Energy and is located at Esperantoplatsen in Göteborg.
Where the power plant, named Rosenlundsverket, is located today, Spårvägen built a power generation plant in 1902. In the years 1907-1908 a new power station was built, which was fueled with coal. However, this station was only a very small part of Göteborgs electricity needs. Most of it came from Trollhättan’s hydroelectric power station after this was completed in 1910. The Rosenlund plant was then a purely reserve power plant.
In the early 1950s, a new plant was built at Rosenlund, an oil-fired CHP plant that would also produce district heating. The new district heating plant was commissioned in 1954. During the 1960s and 1970s, four new hot water boilers were installed and the plant was built in the 1980s to be largely fired with natural gas. The natural gas ignition was started in 1988. In the 1980s, flue gas cleaning was also installed. The owner of the work is the city-owned company Göteborg Energi AB.
Rosenlundsverket’s production capacity today is 662 MW of heat and 36 MW of electricity, calculated as delivered heat and power output. For combined heat and power production, ie electricity and heat production, there are two boilers. Together, the boilers have a maximum power of 87 MW of heat and 36 MW of electricity. With flue gas condensation the heat output increases approximately 15 MW. Steam boilers are designed to be fired with natural gas. Separate flue gas ducts come from each steam boiler to the mouth of a common chimney, the smaller of the two chimneys on the plant.
In Rosenlundsverket there are also four hot water boilers used solely for heat production. Hot water boilers are heated when needed to cope with peak loads as well as reserve for base load production. In one of the hot water boilers, natural gas is primarily boiled, but oil can also be used for cooking oil. The other three boilers are built for oil burning. These boilers each give a maximum heat output of 140 MW.
Late 2007, remote cooling at Rosenlundsverket is also being produced. The capacity is 15 MW freeze against Göta river, 22 MW absorption cooling machines and 40 MW compressor cooling machines.
More information at gamlagoteborg.se and sv.wikipedia.org.
